Products Description

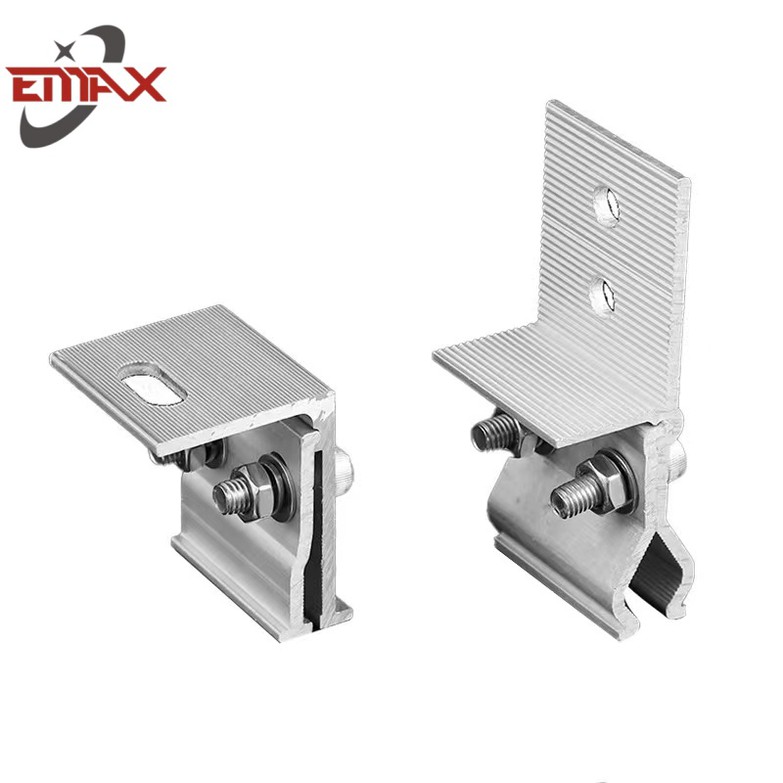

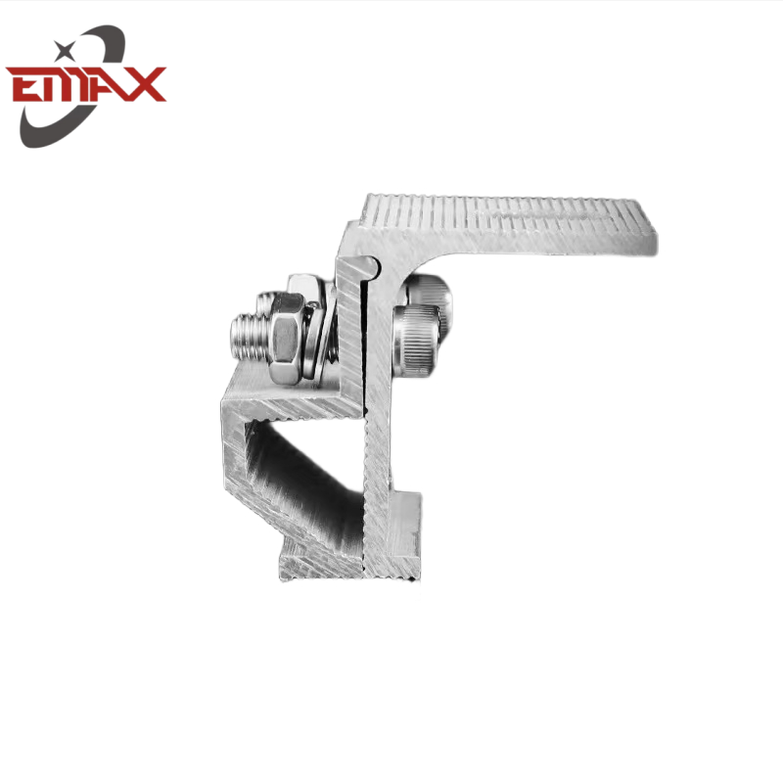

PV Mounting System Universal Clamp
Let's cut through the jargon – these clamps are what stand between your solar investment and costly microcracks.
Picture this: Your 450W bifacial panel flexing in 90mph winds. Generic clamps bite into frame edges like pliers, creating stress hot spots. Our solution? Forged 6061-T6 aluminum cores wrapped in 8mm EPDM cushions – think of it as a shock absorber for thermal swings. The tapered jaw design isn't just fancy geometry; it's proven to reduce frame strain by 62% compared to standard clamps.
Materials Matter
Bare Aluminum Frames: Anodized clamp jaws prevent electrolytic corrosion
Coated Steel Frames: Copper-free alloy components avoid galvanic reactions
Frameless Glass Panels: Silicone vacuum pads grip without scratching
Customization That Actually Works
Last month, a Texas oil company needed clamps for their curved rooftop array. We:
3D-scanned existing rails
CNC-milled 500 clamps with 0.15mm tolerance
Added seismic locks for 0.8g earthquake compliance
Specialized designs we've shipped:
Asymmetric clamps for 15° tilted parking structures
Low-profile jaws for 1.2mm thin-frame PERC modules
Quick-release versions for floating solar maintenance
Testing Beyond Checkboxes
Our IEC 61215 protocol isn't just paperwork:
Thermal Torture: Panels cycled -40°C → +85°C while clamped (1,200×)
Mechanical Abuse: 1,000Nm torque tests with 10° panel misalignment
Real-World Sim: Salt spray (ASTM B117) + UV aging (3,000hr Q-SUN)
Field result: 0.003% failure rate across 2.8 million installed clamps.
Your Design, Our Blueprint
Send sketches on a napkin? We'll:
Convert to CAD with load simulations
3D-print prototypes within 48hr
Deliver production units in 10 days
related products
If you are interested in our products, please contact us
Products Description
| Product Name: | PV Mounting System Universal Clamp |
| Material: | Steel, Carbon Steel,Aluminum etc. |
| Surface treatment: | HDG,Powder Coat, Sandblasting, Anodizing, Cleaning, Degreasing, etc |
| Package: | Carton, Wooden Case or as Required |
| Country of origin: | China |
Products Show
We can provide free samples. Please feel free to contact us.
about emax
our service
Packing & Delivery
We can provide packaging according to customer requirements, such as cartons, pallets, wooden boxes, etc., including customized packaging required by customers
Our Advantages:
Laser cutting is a comprehensive technologycombining light, machine and electric.Materials that Suitable for Laser Cutting:constructional steel,stainless steel,alumnium,titanium,copper/brassMerits of Laser Cutting:
1.Joint-cutting can be welding without re-processing.
2.Running with high speed.
3.Clean and Safe.
Welding robot is an industrial robot engagedin welding(including cutting and spraying).Traditional welding is controlled by labors,so it definitely exists rough welding in work-manship. By digital production of welding robot,welding quality becomes more controllable.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
