Products Description

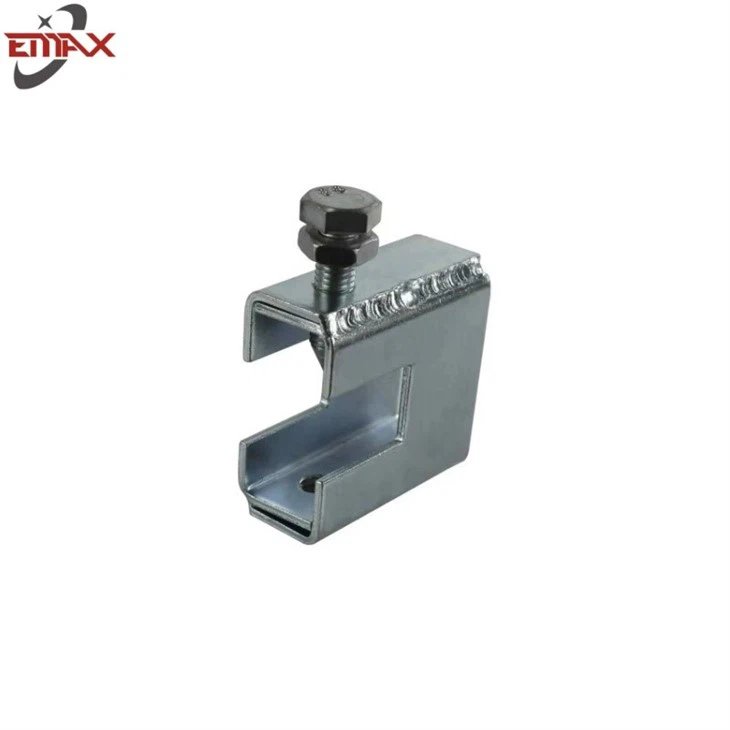

Custom Adjustable Beam Clamp
Custom Adjustable Beam Clamps are indispensable hardware for securely suspending pipes, conduit, cable trays, and equipment from structural steel beams in industrial and commercial settings. Their defining feature – the ability to adjust the clamping width – makes them incredibly versatile across different beam flanges. However, their true value and reliable performance stem directly from a factory's advanced sheet metal fabrication capabilities. Here's how a robust sheet metal production line is essential for manufacturing high-quality adjustable beam clamps:
Material Mastery & Sourcing:
High-Strength Steel: These clamps bear significant loads. Factories must source and expertly process cold-rolled steel (CRS) like A1008 or hot-rolled pickled and oiled (HRPO) steel (A1011), typically in gauges from 7 (3.5mm) to 12 (2.0mm). Knowledge of material properties (yield strength, tensile strength) is critical for load ratings.
Corrosion Resistance Options: Capabilities must extend to processing galvanized steel (ASTM A653) or pre-plated steels for corrosion resistance, often essential for harsh environments.
Precision Stamping & Punching:
Complex Blanking: Creating the intricate profiles of the clamp body, sliding jaw, and strap components requires high-tonnage presses with precision progressive dies. This ensures consistent part geometry, clean edges, and crucial hole patterns for bolts and adjustment mechanisms.
Tight Tolerances: Hole locations for pivot pins and adjustment teeth/bolts must be held to tight tolerances (±0.1mm - ±0.3mm) to ensure smooth sliding action and proper clamping force distribution without binding.
Advanced Bending & Forming:
Heavy-Gauge Forming: Forming the robust "C" or "U" shape of the main clamp body and the complex angles of the sliding jaw demands high-precision press brakes with significant tonnage and CNC control.
Consistency & Springback Control: Achieving consistent bend angles and radii across thousands of parts, while compensating for material springback, is vital for reliable fit and function. Sophisticated tooling and machine programming are key.
Critical Features: Forming the "teeth" or serrations on the strap that engage with the sliding jaw requires specialized tooling to ensure positive locking without slippage under load.
Expert Welding (Where Applicable):
Strength & Integrity: Some clamp designs incorporate welded components (e.g., nuts welded to plates, reinforcement brackets). Factories need proficient MIG or spot welding processes with strict quality control (visual inspection, potential destructive testing) to guarantee weld integrity matching the clamp's load rating.
Surface Finishing for Durability:
Pre-Treatment: Thorough cleaning (degreasing, phosphate coating) is essential before finishing to ensure adhesion and corrosion protection.
Robust Finishes: Electrostatic powder coating is the industry standard. The factory must have large-capacity ovens and precise application systems to deliver uniform, durable, and chip-resistant finishes in various colors (often safety yellow, grey, black). Hot-dip galvanizing capabilities are a major plus for extreme environments.
Quality Control Embedded in Production:
In-Process Checks: Monitoring material thickness, blank dimensions, bend angles, hole locations, and weld quality at each stage prevents defects from propagating.
Final Inspection: Rigorous checks of critical dimensions (overall width range, jaw opening, hole alignment), functionality (smooth sliding, secure locking), finish quality, and verification against load rating specifications (often involving physical proof testing on samples) are mandatory. Use of CMMs or precision gauges is common.
Traceability: Implementing systems to track material batches and production lots ensures accountability and facilitates recalls if necessary.
Customization & Scalability:
Adaptable Tooling: The ability to quickly design, fabricate, and set up new stamping dies or bending programs is crucial for offering custom widths, bolt patterns, or load capacities beyond standard catalog items.
High-Volume Efficiency: A well-organized sheet metal line with automated material handling, efficient press setups, and streamlined workflows allows for cost-effective production of large quantities, meeting project demands without sacrificing quality.
Prototyping: Sheet metal prototyping capabilities (laser cutting, CNC bending) allow for rapid design validation of custom clamp configurations before committing to full hard tooling.
In Essence:
The reliability, strength, and adjustability of Custom Adjustable Beam Clamps are not accidental. They are the direct result of a factory's mastery over sheet metal fabrication. From selecting the right high-strength steel and cutting it with precision, to forming complex shapes consistently, applying durable finishes, and enforcing rigorous quality control throughout – every step relies on advanced sheet metal capabilities. A factory excelling in these areas delivers beam clamps that installers trust to securely suspend critical infrastructure, knowing they are built to precise specifications and proven performance standards, batch after batch. The clamp's adjustability is the user feature; the factory's sheet metal prowess is the foundational guarantee of its performance.
related products
Products Description
| Product Name: | Custom Adjustable Beam Clamp |
| Material: | Steel, Carbon Steel etc. |
| Surface treatment: | HDG,Powder Coat, Sandblasting, Anodizing, Cleaning, Degreasing, etc |
| Package: | Carton, Wooden Case or as Required |
| Country of origin: | China |
Products Show
We can provide free samples. Please feel free to contact us.
about emax
EMAX: Precision Metal Solutions Since 1993
For over three decades, EMAX has transformed sheet metal into essential components. Operating from our 11,000 m² facility, we combine robotic welding precision with the force of 400-ton presses to deliver critical parts across industries. We manufacture durable pole line hardware, precision sheet metal fabrications, robust agricultural machinery components, high-strength furniture hardware, and reliable auto spare parts. Our expertise spans custom stamping solutions, aluminum/stainless/copper fabrication, welded assemblies, and specialized components for agriculture and furniture sectors. EMAX delivers the pressed, stamped, and formed metal solutions that keep industries moving.
workshop
Our Advantages:
Laser Cutting & Robotic Welding: Precision Power
Laser cutting fuses intense light with motion control to slice through steel, stainless, aluminum, titanium, copper, and brass. It delivers weld-ready edges straight off the machine – no extra grinding needed. Expect fast cuts, clean results, and a safer shop floor.
For welding, ditch the inconsistency of hand torches. Robotic welders automate the process, delivering precise, repeatable joins every time – perfect for cutting, spraying, or complex fabrication. Digital control means reliable, top-tier weld quality, shift after shift.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
